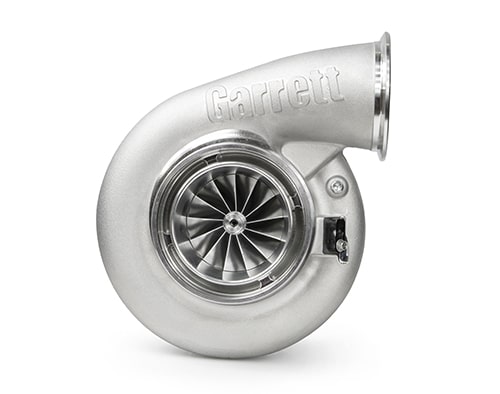

Garrett G45-1600-80MM Supercore with Compressor Housing with VBand Outlet

Features

• G45-1600 compressor aero increases flow up to 16% (compared to GTX4508R)
• 80mm compressor inducer | 109mm compressor exducer
• Ceramic dual ball bearing with steel cages
• G Series turbine aero increases flow 14% (compared to GTX45R)
• Inconel turbine wheel with 89mm inducer flows up to 56 lbs/min
• Lightweight aluminum backplate
• Fully machined speed sensor and pressure ports
• Water fittings included with supercore
• Stainless steel turbine housings available in T4 divided inlet
• Sized for drag racing classes: Sport Front Wheel Drive, Ultimate Street, Super Street, Street Fighter

G45-1600 Part Number: 888169-5006S

WARNING: Maximum allowable turbocharger speed is 102.5krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor can be installed into the compressor housing to monitor shaft speed. Sensors sold separately. (click here for details)

Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.
